TL Range

Toughlift jacking system
Toughlift jacking system
  • Working pressure 10000 PSI
  • Choice of 8 models with a range of accessories
  • Used in mining, construction & railway industries

The Hi-Force ToughLift jacking system offers users the easiest and safest method of lifting material haulers in the mining and construction industry and locomotives in the railway industry, when critical maintenance and breakdown repair work is required. Suitable for lifting even the largest earth haulers in the world, the Hi-Force ToughLift is available in 55, 110, 165 and 220 ton lifting capacities.

With the introduction of the TLA20027 to the range, lifting heights have been increased to 27 inches without the need for extensions and all air driven models are operated by a 90 PSI air driven motor.

The Hi-Force ToughLift models incorporate a 3-speed pump unit, giving faster advance and retract times, both under load and no load conditions. All models are fitted with a load tonnage gauge as standard and new low maintenance 3-piece handle design to increase maneuvrability. To aid with lifting, the models come with dedicated lifting points to keep the unit balanced and secure while lifting. A newly designed manifold and muffler allows for easier maintenance and better flow, improving the performance on all air driven ToughLift models.

The redesigned wheel position on the frame and wear-resistant steel base plate offer better ground clearance, making the Hi-Force ToughLift suitable for use on varied terrains. Pivot plates fitted on all models allow the cylinder and tank unit to articulate separately, thus retaining the load on the base plate and preventing the force from being transferred to the wheels. New optional accessory options include load block tool box and pneumatic tyres available on 55, 110, 165 and 220 ton models.

All Hi-Force ToughLift jacking systems are supplied fitted as standard with a hardened steel lifting saddle. 55 ton models come with a patented “snap latch” handle assembly for easy positioning and transportation and a patented jacking system designed for increased safety, enabling them to be easily positioned, in the tightest of spaces, to ensure location into the correct and exact lifting and jacking position.

For ease of use and safety, all Hi-Force ToughLift models are operated via a 16.5 foot remote, push button hand pendant controller to ensure the operator has precise control over the lifting operation from a safe distance. All Hi-Force units come with pneumatic pilot valves with pendant control and 55 ton models also come with solenoids as a standard option. The 110, 165 and 220 ton models can have solenoids and electric driven pump as options available upon request.

The Hi-Force ToughLift is built with the cylinder as a one-piece design making it effective against side loading and allowing for quicker turnaround times, should the unit require servicing. Fitted with large
diameter wheels and heavy duty solid tyres as standard, all ToughLift models are narrow in width and have the smallest footprint area in the industry.

  • Choice of 55, 110, 165 or 220 ton lifting capacities
  • High speed 3-stage pump unit offers faster advance and retract times, both under load and no load
  • Solid tyres fitted as standard with option of pneumatic tyres
  • Narrow width wheels and redesigned wheel position for better ground clearance and balance when manoeuvring
  • Longer, robust 4-position lifting handle design for increased leverage and manoeuvrability on 110, 165 and 220 ton models
  • Integral airline filter, lubricator and pressure regulator unit on air driven models. Option of auto-drain unit available on request.
  • Push button remote hand pendant controller with 16.5 foot control cable
  • Load tonnage gauge fitted as standard on 110, 165 and 220 ton models
  • User friendly design with easily accessible maintenance features
  • Wide range of accessories available for even greater versatility
ToughLift jacking systems
ToughLift jacking systems

Specifications

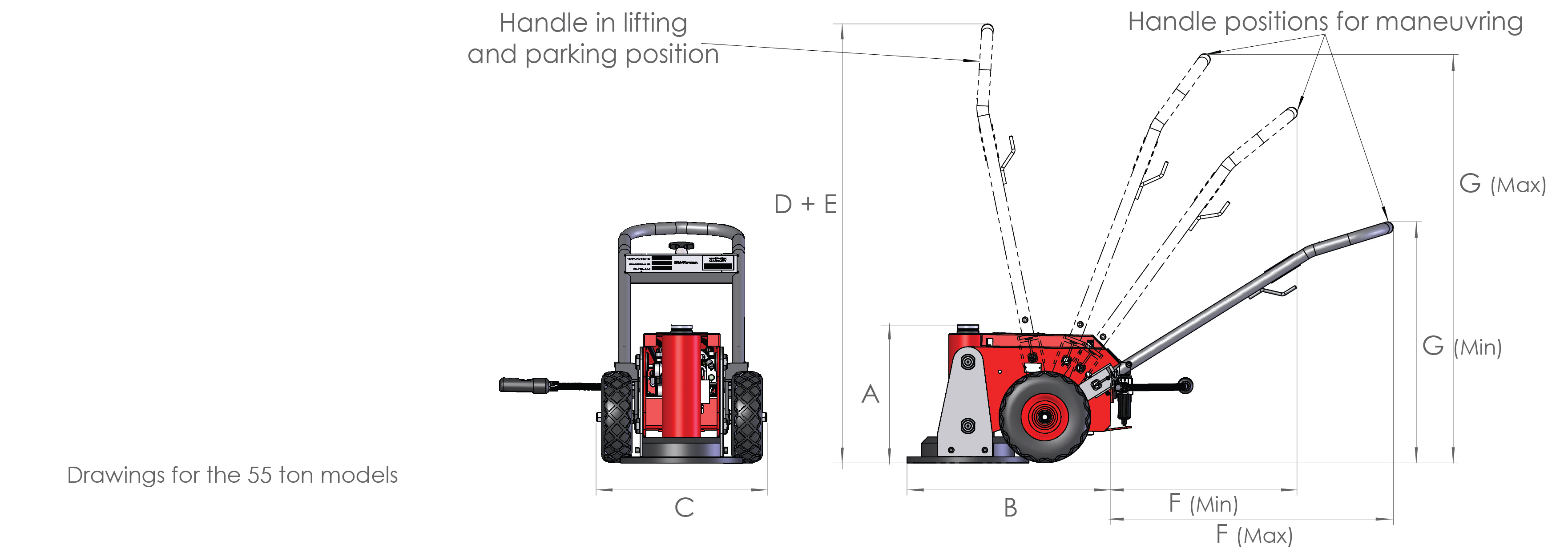

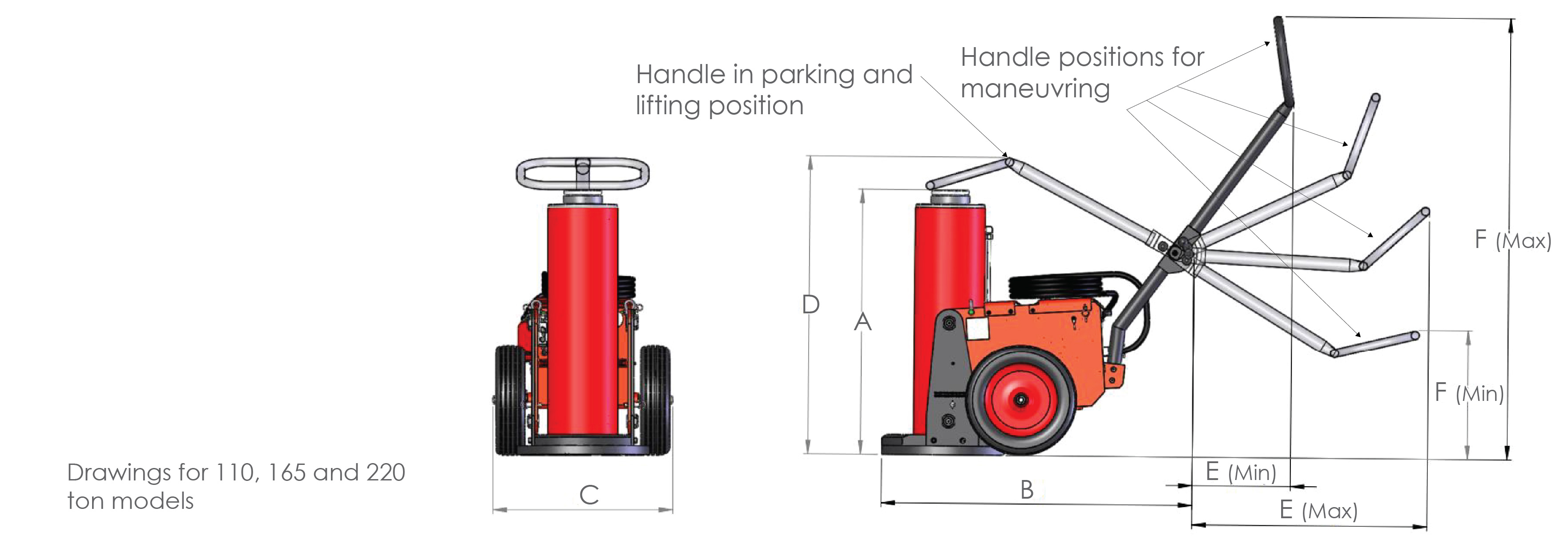

Model No. Capacity Tons Power Supply Stroke inch Weight lbs Max Additional Stack inch Dimensions in inch
A B C D E F min-max G min-max
TL050A255 55 90 PSI air driven 10.00 352.7 26.79 17.93 26.00 22.06 56.74 56.74 14.97-39.40 27.58-51.22
TL050E255 55 240V electric 10.00 370.4 29.79 17.93 26.00 22.06 56.74 56.74 14.97-39.40 27.58-51.22
TLA10016 110 90 PSI air driven 15.96 637.1 18.91 26.20 44.52 25.69 32.74 14.03 - 33.65 18.32 - 63.24 -
TLA10021 110 90 PSI air driven 20.88 703.3 7.09 33.21 44.52 25.69 37.27 14.03 - 33.65 18.32 - 63.24 -
TLA15015 165 90 PSI air driven 15.37 690 19.11 26.20 44.52 25.69 32.90 14.03 - 33.65 18.32 - 63.24 -
TLA15020 165 90 PSI air driven 20.49 769.4 7.09 33.21 44.52 25.69 37.94 14.03 - 33.65 18.32 - 63.24 -
TLA20015 220 90 PSI air driven 15.00 822.3 19.70 26.00 44.52 25.69 32.70 14.03 - 33.65 18.32 - 63.24 -
TLA20027 220 90 PSI air driven 27.00 998.7 7.09 37.98 44.52 25.69 42.75 14.03 - 33.65 18.32 - 63.24 -

Note: 110, 165 and 220 ton electric driven Hi-Force ToughLift jacking systems available on request
