TL 系列

Toughlift jacking system
Toughlift jacking system
  • 工作压力 700 Bar
  • 有8个型号和多种配件可选
  • 用于矿业,建筑业&铁路业

Hi-Force ToughLift 驾车机为矿业和建筑业的使用者提供了最简便和最安全的方法来顶升矿石和建筑材料搬运车,以及顶升列车机车头来进行机车的维修和保养。也适用于顶升世界上最大的搬运车,Hi-Force 驾车机有四种顶升能力可供选择:50,100,150 和200 吨。

新改进的TLA20027系列,在不增加延长块的情况下,顶升高度已经达到685 mm,所有的气动型号都由6 bar 的气动电机驱动。

Hi-Force ToughLift驾车机型号带有3-速泵组,不管是在无负载和带负载情况下,都能提供更快速的前进和回程时间。所有型号标准配置负载吨位压力表,易于维护的三段式手柄设计增加了操作灵活性。为协助顶升,每个型号带有专门顶升点来保持整个系统的平衡和安全。新设计的阀分配器和消音器更易于维护,流通能力更好,提高了所有气动驾车机型号的工作性能。

重新设计装置在框架上的车轮和耐磨钢板底座提供最小离地间隙,让Hi-Force驾车机可在各种地形上使用。每个型号都安装有枢轴板,使液压缸和泵组可以单独工作,因此可以将负载保留在底座钢板,避免负载被转移到车轮上。新的附件包括垫块工具箱和可选充气轮胎型号:100,150,200 吨。

所有Hi-Force驾车机系统都标准配置硬化钢鞍座。50吨型号驾车机配有专利设计的“弹簧锁”手柄更易于放置和运输。具有专利设计的顶升系统增加了操作安全性,使得驾车机能够更容易的被放置在狭窄的空间内,确保在正确的位置进行精确的顶升。

为了使操作更便利和安全,所有的Hi-Force驾车机都可通过5米长的线控来控制,手柄遥控按钮确保操作者在安全距离可精确进行顶升操作。所有的驾车机系统都带有气动液控阀控制手柄,50 吨型号的电磁阀是标准选项。可根据要求提供带电磁阀和电动泵的 100,150和 200 吨型号。

Hi-Force驾车机液压缸的一体式设计使操作更有效率,避免了偏载, 维修维护周转时间更快。标准配置大直径的车轮和重型实心轮胎, 所有的驾车机型号都具有窄宽度结构,在行业内有最小的触地面积。

  • 有50吨,100吨,150吨和200吨顶升工作能力
  • 高速3级泵在有负载和无负载时都可提供快速的前进和回缩速度
  • 标准配置实心轮胎,也可选择气动轮胎
  • 较窄的轮胎宽度和重新设计的轮胎位置,提供了更大的操作空间和平稳性
  • 100,150和200吨的型号有设计更长的手柄,提供4个不同操作位置,增加杠杆率和操作灵活性
  • 气动泵型号配置一体式气源过滤器,润滑器和压力控制器。可根据要求提供自动排空套组.
  • 5米长线控,线控板带操作按钮
  • 100,150和200吨型号标准配置负载吨位压力表
  • 使用者友好操作设计,容易维修
  • 有一系列附件可供选择,更大程度的提高了通用性
ToughLift jacking systems
ToughLift jacking systems

产品规格

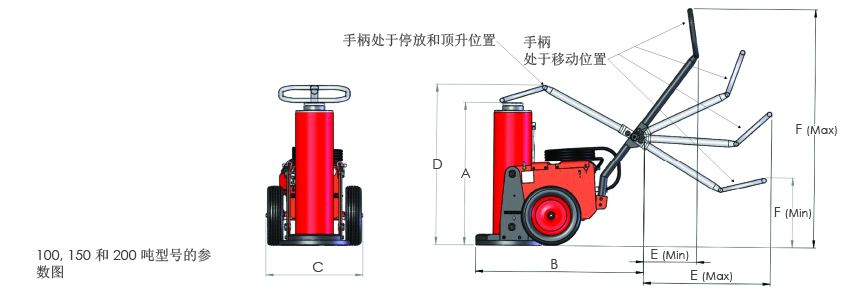

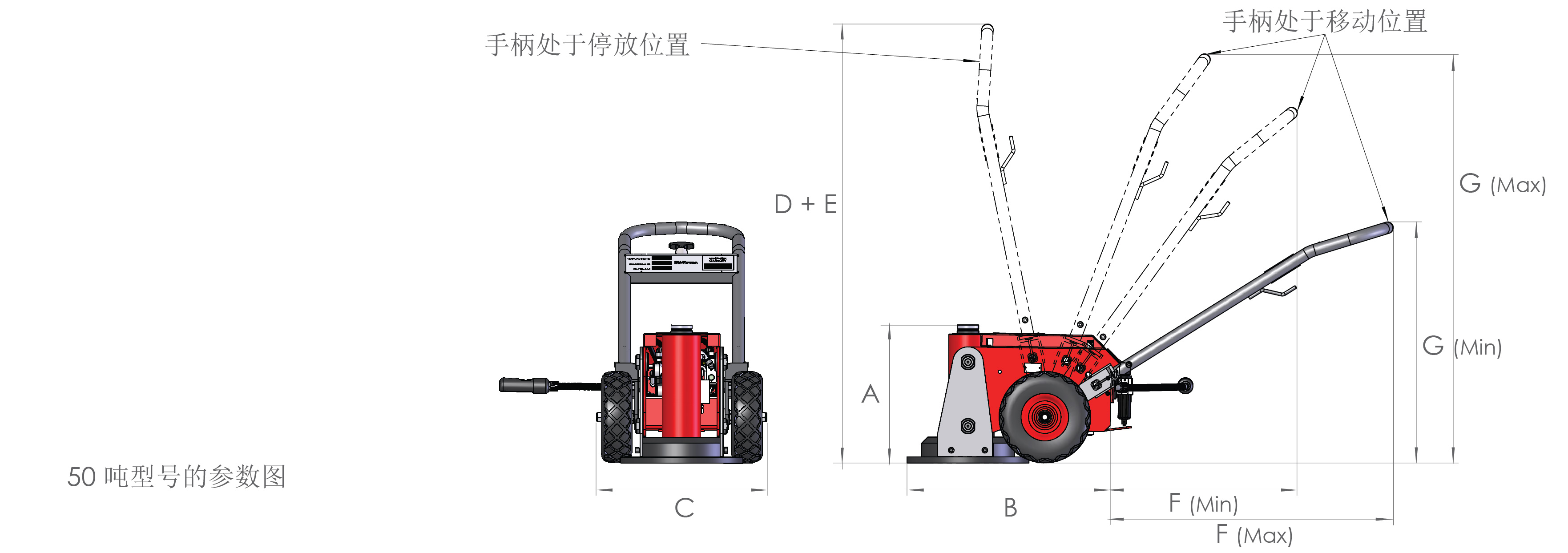

型号 工作能力吨 动力源 行程mm 重量Kg 最大延长高度mm 尺寸mm
A B C D E F 最小 最大 G 最小 最大
TL050A255 50 6-Bar气动 254 160 680 455 660 560 1440 1440 380-1000 700-1300
TL050E255 50 240V电动 254 168 680 455 660 560 1440 1440 380-1000 700-1300
TLA10016 100 6-Bar气动 405 289 480 665 1130 652 831 356-854 465-1605 -
TLA10021 100 6-Bar气动 530 319 180 843 1130 652 946 356-854 465-1605 -
TLA15015 150 6-Bar气动 390 313 485 665 1130 652 835 356-854 465-1605 -
TLA15020 150 6-Bar气动 520 349 180 843 1130 652 963 356-854 465-1605 -
TLA20015 200 6-Bar气动 381 373 500 660 1130 652 830 356-854 465-1605 -
TLA20027 200 6-Bar气动 685 453 180 964 1130 652 1085 356-854 465-1605 -

注意: 可根据要求提供100, 150 和 200 吨型号的电动 Hi-Force 驾车机。
